Secabo THE BEAST white tonerSecabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner
Secabo THE BEAST white toner

Secabo THE BEAST white toner

by Secabo

Article number: 100-109-011-16

The Swingaway transfer press TS7 SMART from Secabo brings the textile finishing up to date: It is a high-performance, efficient press. Please note that the standard HP7 heating plate must also be purchased for other transfer processes such as sublimation. State-of-the-art textile finishing.

4.343,50 €  incl. VAT
plus shipping costs
Expected availability 24.05.2020 (0 pcs.)
Please enter a quantity.
Oliver Bayer
Edwin Kallo
Alicia Hierl
Angelina Bayer
YOW! Vertriebsteam
mail@y-o-w.com
0800 - 9697467

product details

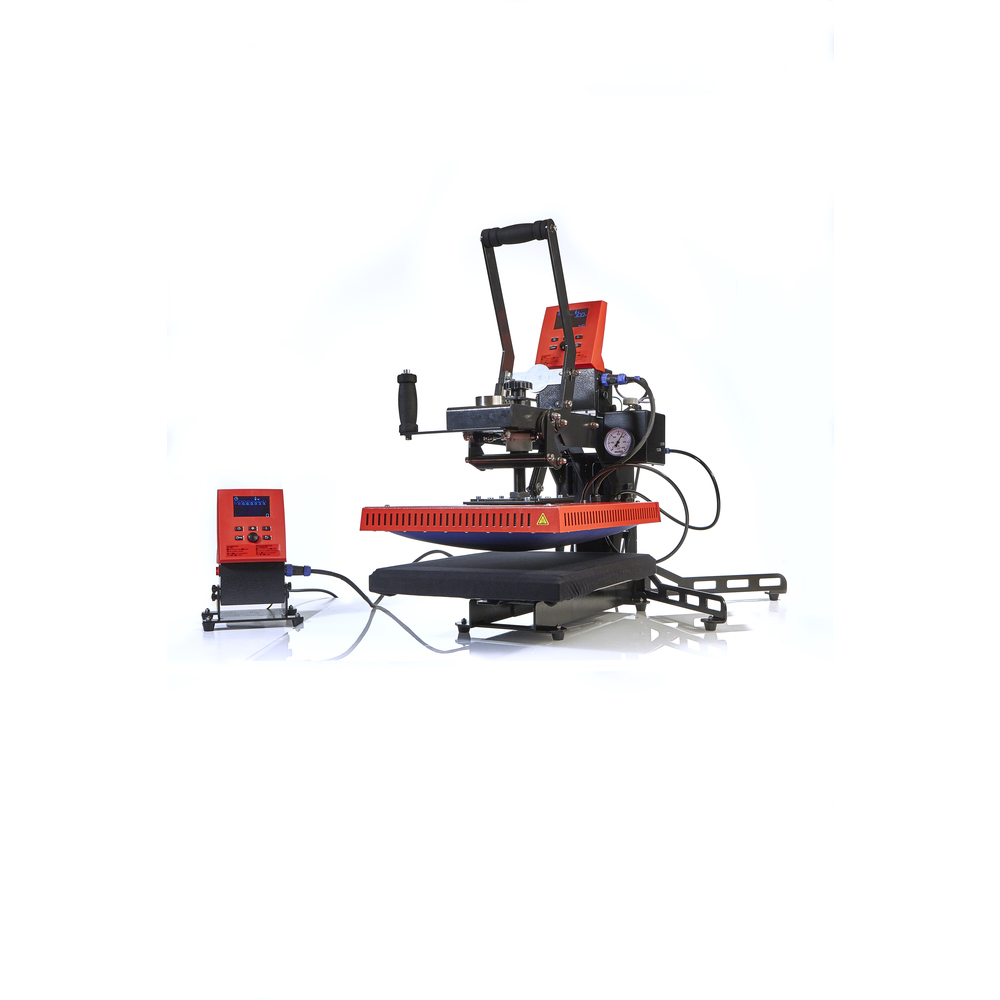

The absolute professional device for high-end applications at the highest level - THE BEAST White Toner from Secabo combines a newly developed smart transfer press, a unique membrane heating plate and a heated base plate. TS7 SMART - the heart of THE BEAST White Toner is Secabo's first transfer press "Made in Germany". THE BEAST White Toner enables high-end applications and gentle textile transfers. Thanks to its modular design, the newly developed Secabo TS7 SMART heat press in combination with the SH7 softheat heating plate and the TB7 thermobase can also master the most demanding textile finishing tasks. The combined product "THE BEAST White Toner" works quickly, protects the textiles and solves typical problems during transfer. State-of-the-art textile finishing. The Swingaway transfer press TS7 SMART from Secabo brings textile finishing up to date: it is a high-performance, efficient press. It processes large-area prints with a working surface of 40 x 50 cm and creates transfer objects up to seven centimeters high. The new TS7 SMART can also be controlled using the Secabo app. This currently has the most extensive database with transfer parameters available on the market: the user selects the type of fabric and transfer medium and automatically receives the appropriate settings for temperature, time and pressure. A big advantage of the Secabo app are the simple instructions for complex multi-stage transfer processes. New heating technology for transfers without leaving marks - With the innovative Secabo SH7 Softheat membrane heating plate, a membrane automatically inflates after the press is closed. This new heating technology - also made in Germany - compensates for unevenness such as seams, pockets or buttons and significantly minimizes heat marks. Even shiny polo collars are a thing of the past. Pressure and temperature peaks in problematic areas such as buttons, collar, hem and seam are minimized. The softheat plate is ready for use after only three minutes of heating and consumes significantly less electricity than conventional heating technology. With the new TB7 thermobase, Secabo also offers a heated base plate as an extension. This is particularly recommended for sensitive textiles. With this product, especially difficult white toner transfers can be carried out without any problems. The heat also comes from below when using the thermal base. Overall, this enables lower transfer temperatures, shorter transfer times and less imprints on the textiles. As usual from Secabo, the BEAST White Toner is simple and can also be used by beginners. THE BEAST White Toner is compatible with quick-change systems, removable plates, HP7 and the slide extension as well as other accessories from Secabo. Please note that the standard HP7 heating plate must also be purchased for other transfer processes such as sublimation.

  • Secabo heat press TS7 Smart
  • Bluetooth interface for the Secabo SMART Transfer App with integrated transfer-database and numerous additional features
  • Digital controller for temperature, time, pre-pressing, counter and many additional features with innovative operating concept
  • Very wide swivel angle 110°
  • Suitable for transfer objects with a height of 0mm - 70mm
  • Max. contact pressure of 250g/cm² can be reached with little manual effort
  • Swivel direction left/right selectable
  • Compatible with quick-change system and slide
  • Modular construction, compatible with various heat and base plates
  • Secbo Thermobase TB7 40cm x 50cm:
  • heated base plate as an extension for your 40cm x 50cm models by Secabo, such as the TC7 SMART, TS7 SMART, TPD7 and TPD7 PREMIUM.
  • Better printing results, especially with sublimation and white toner transfers
  • Particularly well-suited for sensitive garments
  • The TB7's temperature can be set via its own integrated Secabo controller
  • Easy to install, even on quick-change systems and slide extensions
  • Quickly heats up to a max. temperature of 160 °C
  • Secabo Thermobase SH7:
  • high-quality garments are carefully processed
  • pressure and temperature peaks are minimized
  • minimal discoloration from heat marks
  • unevenness perfectly compensated for during transfers
  • minimal energy consumption
  • Great time savings as there is no need to position seams over the edge
  • For retrofitting many old and almost all new Secabo heat presses

Technical data

Size of the work surfaces40cm x 50cm (HP7), 35cm x 45cm (SH7) and 40cm x 50 cm (TB7)
Adjustment path of the max. Object height70mm
swivel angle110 °, opening to the right or left possible
max temperature225 ° C (HP7), 190 ° C (SH7) and 160 ° C (TB7) °C
max. downforce250 g / cm² (HP7) and 360 g / cm² (SH7)
maximum time preset999 s (TS7 SMART)
Power supply:AC voltage 230V / 50Hz - 60Hz, 2 kW (TS7 SMART), AC voltage 230V / 50Hz - 60Hz, 1.3kW (SH7) and AC voltage 230V / 50Hz - 60Hz, 2.0kW (TB7)
environment+ 5 ° C - + 35 ° C / 30% - 70% humidity (applies to all components)
dimensionsW: 596 mm x D: 1070 mm H: 854 mm (TS7 SMART with stand), 44cm x 54cm x 8cm (SH7) and 41cm x 51cm x 7cm (TB7)
scope of deliveryTransfer press (TS7 SMART), SH7, TB7, power cable and German-language operating instructions
optionsHP7, quick-change system, removable plates and slide extension
Membrane lifeThe membrane is a wearing part. If you work with the Membrane correctly, you can expect it to have a lifespan of 25,000 transfers.
pressure settingvia height adjustment of the heating plate (TS7 SMART) and adjustment of pneumatic pressure 0-360 g / cm² (SH7)
Heating up time SH72.5min - 3min
weight without packaging70,00 kg
weight with package65,00 kg
BrandSecabo
